领域与概述/ Brief Introduction：

本制作线由全主动理瓶机、滚筒轴式洗瓶机、灭菌处理低温干燥机、眼麻醉药灌装设备产出线旋盖机、落地标贴超临界锅炉成，可完毕理瓶、水、气的刷洗、烘干设备及二氧化碳空气消毒、灌装设备产出线、加塞、旋盖、标贴等产出工序，主要用来眼麻醉药下列关于他小摄入量稀硫酸的联线制作，也可电脑单机独立自主利用。全部贴合GMP规范。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

特殊性/Characteristic：

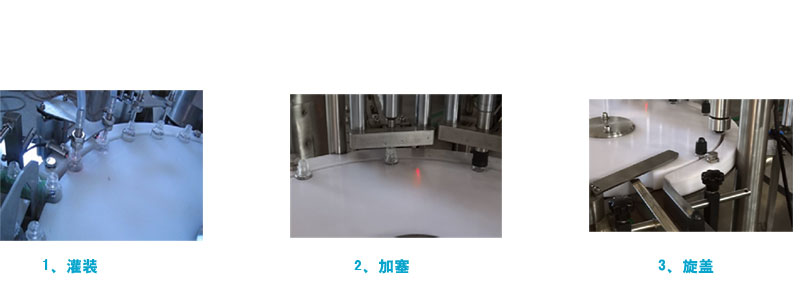

该设备组设计制作机构合情合理，作业维持、装灌误差高，具中国内地竞品业最先进平行。全合乎GMP标准。     眼药剂分装设备旋盖机已成我司的第三步代企业产品，组队程序界面操作，收缩泵分装设备，由真空度吸机诫手配用电磁阀更有效的打塞，保护了稳固性和及格率。采取恒力矩旋盖，具备有无瓶不分装设备、无塞不上盖，无瓶无塞可会自动停用的效果。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

新系统参数值/technical parameters：

实用技术参数/Bottle size	10-20ml
生產力/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
用热水心理压力/ Hydraulic Pressure Mpa	0.3Mpa
供排水量 /water consumption	0.5 m3/h
净化解压缩废气压强 /Clean compressed air pressure	0.6-0.8Mpa
超净减少空气当中需水量/Clean compressed air consumption	300 L/min
供电/Voltage	380V/50Hz
效率/Power	5.5 kw
生产方式线总长/Dimension	11000*1500*1900mm
