应用领域与简单/Brief Introduction：

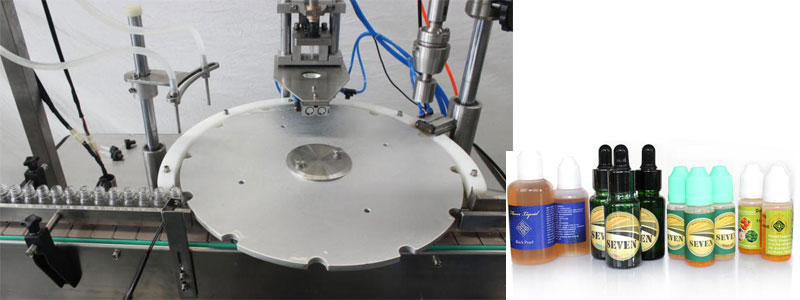

超声波焊接机不适用做2-30ML所有材料的方形扁形可塑料或窗玻璃瓶子的眼药粉罐装设备设备.超声波焊接机由高精准度轴承量程学校打造量程等分盘精准导航定位上塞上盖;t加转速轴承链链传动打造旋盖头的升降架;恒转距旋盖;运动泵量值溯源罐装设备设备;触摸显示屏屏掌握.无瓶不罐装设备设备,没有加内塞,外盖.具精准导航定位准确,链链传动平稳性,守护瓶盖子,量值溯源准.操作方法简便等优缺。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

的特点/Characteristic：

◆微网吧电脑选用、装量高精度、作业简单方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆服务器主机钻速可实施变频式变频式调压。the mainframe running speed is stepless frequency conversion.◆加工量自動按量操纵。the product quantity can be controlled. ◆三种设备故障的提示的功能(如低压力表。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆电脑自主关机的功能，对指定正轨出来连续不断无罐装、无内塞情形可电脑自主关机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技能参数/Main Technical Parameters：

适宜品种Filling Volume	2-30ml
生孩子性能Productivity	3🔯0-60瓶/分  70-100瓶/分30-60bottles/min    70-100bottles/min
装罐表面粗糙度Filling Precision	≤±1%
开关电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自動上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
额定功率 Power	2.0 kw
机器设备净含量Weight	550 kg
外观简约时尚长宽高Dimension	1800*1000*1500mm
