应用领域与筒介/Brief Introduction：

滴注自来水专用设配滴注自来水是纯化水经水蒸气蒸馏得到的，病毒内黑色素等指标图均合适全国药典滴注自来水项下法律法规的水体质量追求，可以作为为业物制药业中小型企业中当下随便滴注入身体内药物剂量的容剂。滴注自来水专用设配其大部分也包括滴注自来水分离纯化、循坏吸收、静态分发和生产工艺把控好等其大部分引擎。

优势/Characteristic：

◆全自動运行办法，必免人士误运行分享的种植重大损失；Automatic operation mode, to prevent losses of wrong operation of production;◆零件运用316L金属材质；Components in 316L texture◆带PLC管控的CIP的产品；CIP products with PLC control◆日志与存放清理操作过程的技术参数与步数；Record and save the parameters of the cleaning process and steps◆满意GMP条件的可追述性与可说是明性； Meet GMP requirements traceability and accountability◆分立式化装修设计可以有效减少服务器；Integrated design can effectively save space◆保持产量和清理的高速设置成；Implement production and clean fast switching◆巴氏酒精除菌的，拆洗更恢复原状；Babbitt disinfection sterilization, cleaning more thoroughly◆多效减压蒸馏机：设备液压管路对接彻底通过全自动焊接工艺，按清洁卫生级标准单位，电动阀门通过快卡对接，制止了皮下注射用自来水的二级被污染的；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯压缩空气会高压发生器：PLC组排操作的把握介面，可0-100%全自动调结至需求的总产值的要求；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无卫生死角制作：肌注自来水模式干净干燥液压管路充分满足GMP3D规定要求，胶垫为PTPE/EPDM，隔阂阀能力重新连接时为90度，重复线管重新连接设为0.5的坡度系数，设底点为摆放点,仅以湍液形态重复外流的存放和气流输送模式，严防微生态学的滋生腐败；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆齐全的文档机系统文件格式体统：①文档机系统文件格式契合GMP让；②自动式化调控体统可契合GAMP5；③3Q文档机系统文件格式要求满足医药厂核验的要求。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆选配高特点调频泵用作输送带和分配原则针剂用清水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板传热器，在纯化水长精力嵌套循环历程中达到闭式冷却塔用处。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆打拿水贮罐原则应用卧试贮罐2卧试贮罐，足够气力输送机泵水位线需求，科学的设施罐体空气流速处理生物学膜演变成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆主要包括80℃及以上恒温循环法定制，解决冲水软件微动物引起和严重污染。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆选用通电的烧水（蒸气烧水）气息油烟净化器器。Equipped with electric heating, steam heating) breathing filter◆罐底有水出口加设扇形侧板以减少采面上，必免涡流效应。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐联接选择氢气保养，保护医药用热水儲存及分配原则平台送风机，以免内部流入破坏。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆制药企业加水运输泵采取316L铝合金研发（浸水部份），电增加光泽并钝化清理。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

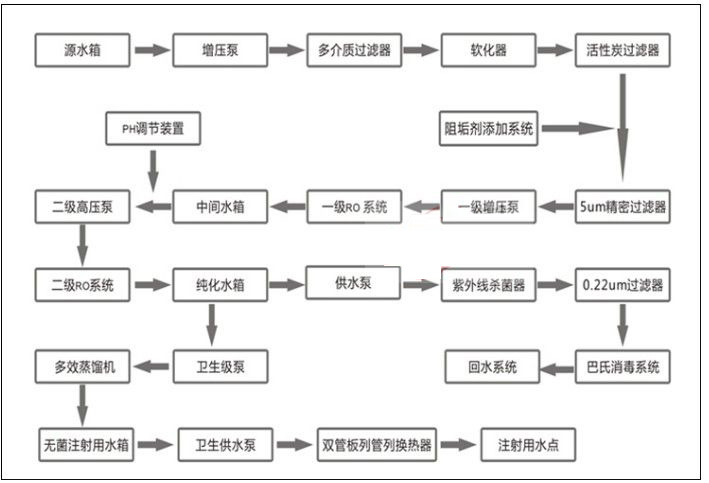

三、系统技术注意事项图
