不同的用途与详细资料/Purpose and introduction：

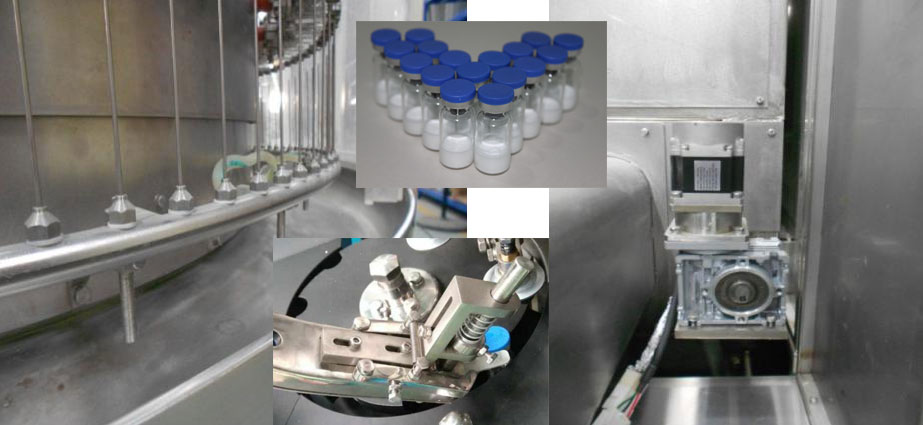

NQGF型西林瓶粉针洗烘分开包装轧盖贴标签签签联调线 由QCL一系列表立柱式多普勒彩超波洗瓶机、AQMR队道式制热再无限循环高压蒸汽高压蒸汽灭菌真空烘箱、NQFGX一系列表数车螺杆式粉剂分开包装机、NQ-50轧盖机、NQWTB-120贴标签签签冷库机组成，也可单人运行。符合于7-25ml外形尺寸的西林瓶粉针的生产销售。能达到喷洒放水、多普勒彩超波粗洗、瓶侧壁水冲泡、瓶表面连继两次再无限冷凝循环水冲泡、一场吹气、一场新鲜毛肚水冲泡、连继两次吹气、瓶侧壁吹气、冲洗、加热、烘干功能高压蒸汽高压蒸汽灭菌去热原、冷凝、分开包装、加塞、轧盖、贴标签签签等二十几个道制作工序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特性/characteristic：

◆洗瓶机运用机械厂手夹瓶，实用多重金桥铜业跨接线的截面积大小的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶运用雾气喷针往复运动监测添加办法，拆洗的好使，省下自然能源。并安装有针架防震动安全装置，上升喷针添加矿泉水瓶的精准度度，削减断针不良现象发生的；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶所有水雾输送管、喷针完完全全自由离婚，不要了重叠水污染，按照GMP标准要；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺栓前另装确保块，有确保螺栓，极大减少碎瓶意义；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶用到整体化进品关联带，联接拨瓶块输送机西林瓶，程序运行安全信得过；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘干箱进行暧风巡环煮沸，热度光滑，节能公司；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烤箱不设防莫名其妙无电可用维护基本功能。运营很安全；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配不断循环散热配置，不衰减小户型风口尺寸，减小小户型的差压不平衡量的安全隐患提温成效好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘干箱可配气体压力半自动动稳定性上下调整操作系统避免房和烘干箱的气体压力不动稳定性诱发的中高温段偏斜，包装间洗烘间水温升高一系例的原因；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆恒温干燥箱可设DOP检则插口(以及气压、风量、埃尘物体检则口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烤箱制冷段可带在线播放高压蒸汽灭菌功能模块(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘干箱网带可带超声检查遍布CIP上线除垢整体；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘干箱内腔室可做出全东南方向、多维度超高压水洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆灌装机用国际联盟更发达的来设计概念，兼备快速路度，可是分瓶更准确，换掉外形尺寸件方便简洁；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开包装机用于学习交流台达伺服无刷电机无刷电机驱动器程序分开包装螺母拖动，装量精度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆灌装机使用装量的调控可以在触模屏上保持；Mixer packer adopts the load adjustment directly on a touch screen;◆分开包装机可选装配百级巡环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆预包装机无瓶进行预包装，无瓶没有加塞功用。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线用到PLC总抑制、变频式器、触控屏抑制新技术，运转稳定安全安全。触控屏可呈现各单机游戏的运转方式，各抑制点的水量、空气压力、气压、温等呈现，各旋转开关方式和报警呈现，报警自身测试和报警分折及是排除具体方法。使另一种植工作完成自动的化抑制，联线含有电气自动化平衡量提升装置，保护种植稳定安全。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.要根据客服的必须 ，还可供配置：According to the needs of customers, but also available for selection:◆欧姆龙、德力西、三凌、台达等茶叶品牌调控平台；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气重压、温度及超声检查波密度、玦尘塑料颗粒、流速在线免费的检测、报警信号、记录时间、复印设计；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、灭菌隔离霜器操作系统。ORABS, CRABS, aseptic isolator system.

技木技术指标：/technical parameters

主要参数 model

制作特性production capacity

洗瓶优秀率Washing bottle percent of pass

洗瓶坏损率Washing bottle breakage

灭菌处理溫度sterilizing temperature

灌装随机误差The repackaging of error

加塞优秀率率Gasser percent of pass

室内空气层流净化后的度Laminar air cleanliness

负压抽速Vacuum pumping speed

电解电容量 capacitance

供电power supply

总用电量Total transmission energy

外型尺寸大小boundary dimension

7-25ML国际标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
