使用与概述/Purpose and introduction

该制造线由理瓶机(上瓶台)、高周波波洗瓶机，灌装生产设备(旋盖)加塞机，轧盖机，标贴纸机等生产设备组合而成On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

特质/characteristic：

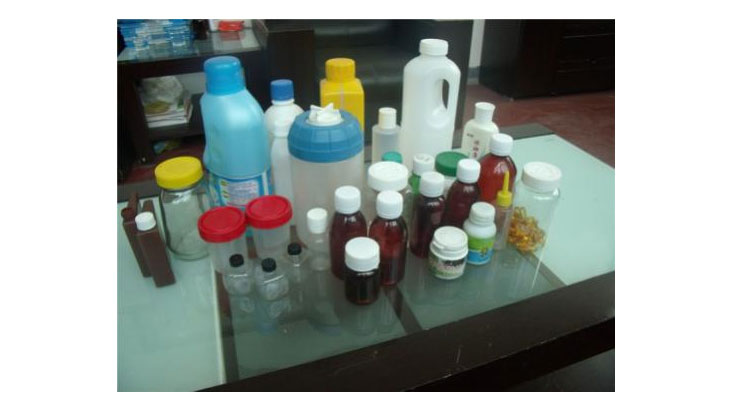

该种植线适宜于 30-500ml系列的设备的装灌加塞密封，拆卸一个标准磨具后，既适宜于塑料材质瓶，也适宜于波璃瓶。兼有不适应位置宽泛，修正简便的特殊性。整线种植作用；适小瓶面积形式，生物体动力粘度而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

技术工艺指标/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶整洁度Washing bottle cleanliness(%)	> 99
装量计算误差The load error(%)	0-2
上塞通过率Plug on the percent of pass(%)	> 98
轧盖适合率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
