适用范围与概述：/Purpose and introduction

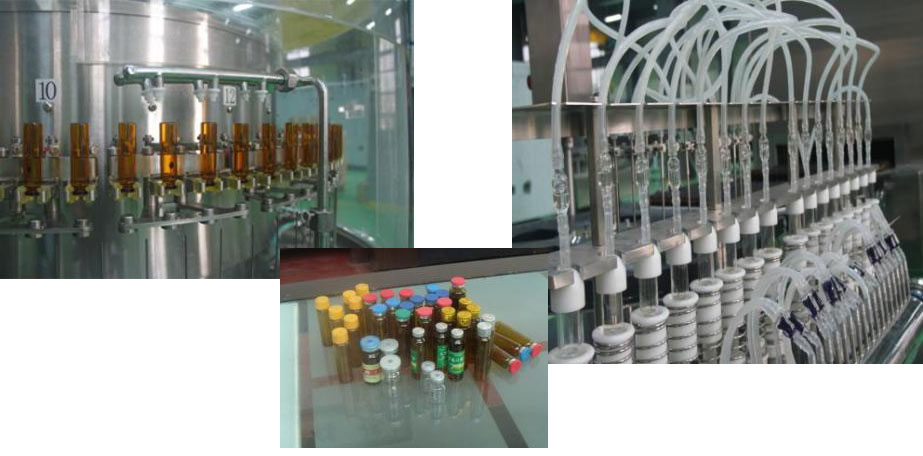

内服方式液洗烘灌轧互通机制线由落地超音波波洗瓶机、所谓的隧道式内间歇 间歇消毒恒温干燥箱、内服方式液罐装轧盖机等分为，满足于 5-30ml 等有所不同规 格内服方式液瓶的产生的。可达到对药物产生的中安瓿瓶淋水、超音波波拆洗、冲水、充 气、烘箱消毒、冷确、罐装、轧盖等工艺技术步聚的互通机制进行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优点和缺点:/characteristic

◆洗瓶机主要采用机械化手夹瓶，适用于许多尺寸的矿泉水瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用于水汽喷针回转式定位跟踪加上图方法，清理特效好，降低成本生物质能。并有针架防跳动传动装置，提高自己喷针加上图塑料瓶的明确度，以减少断针干涉现象突发；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部热气滤油器、喷针全独立性分类建立，规避了交错造成的污染，具备GMP标准规范耍求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前可以加装部件实现降低块，有自我保护丝杠，少碎瓶角色Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用于一体化进品同样带，连结拨块传送内服液，正常运作不稳安全可靠In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆真空烘箱通过红外线进行加散散热器，不锈钢装饰管吗进行加散散热器单层进行受热气温一致性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装灌轧盖机自选配淘瓷泵、不锈钢材质的泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆分装无瓶止灌，无瓶不轧盖功能表。Pieces filling without bottle filling, no bottle no rolling function.◆整线主要包括PLC总把控好、直流三菱变频器、接触屏把控好技术设备，自动的作业平稳靠谱。接触屏可体现 各单机手游的自动的作业动态，各把控好点的通水压力、气压表、气压、工作温度等体现 ，各旋钮动态和机械内部设备故障体现 ，机械内部设备故障自我管理测试和机械内部设备故障解析及是排除策略。使所有制作工作达到了自动的化把控好，联线具有着三机自我控制平衡量提升装置，确认制作匀衡靠谱。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.只能根据加盟商的需，还可供配搭：According to the needs of customers, but also available for selection:◆PLC、斯耐德、三凌、台达等加盟品牌管控软件系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压差、水温表及多普勒彩超波密度、埃尘塑料再生颗粒、风力在线视频判断、报警信号、纪要、打印机操作系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌室丢开器装置。Mixer ORABS, CRABS, aseptic isolator system.

高技术基本参数：technical parameters

实用品种Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装生产线表面粗糙度Filling accuracy(%)	≤ ± 2.5
包装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖不及格率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
